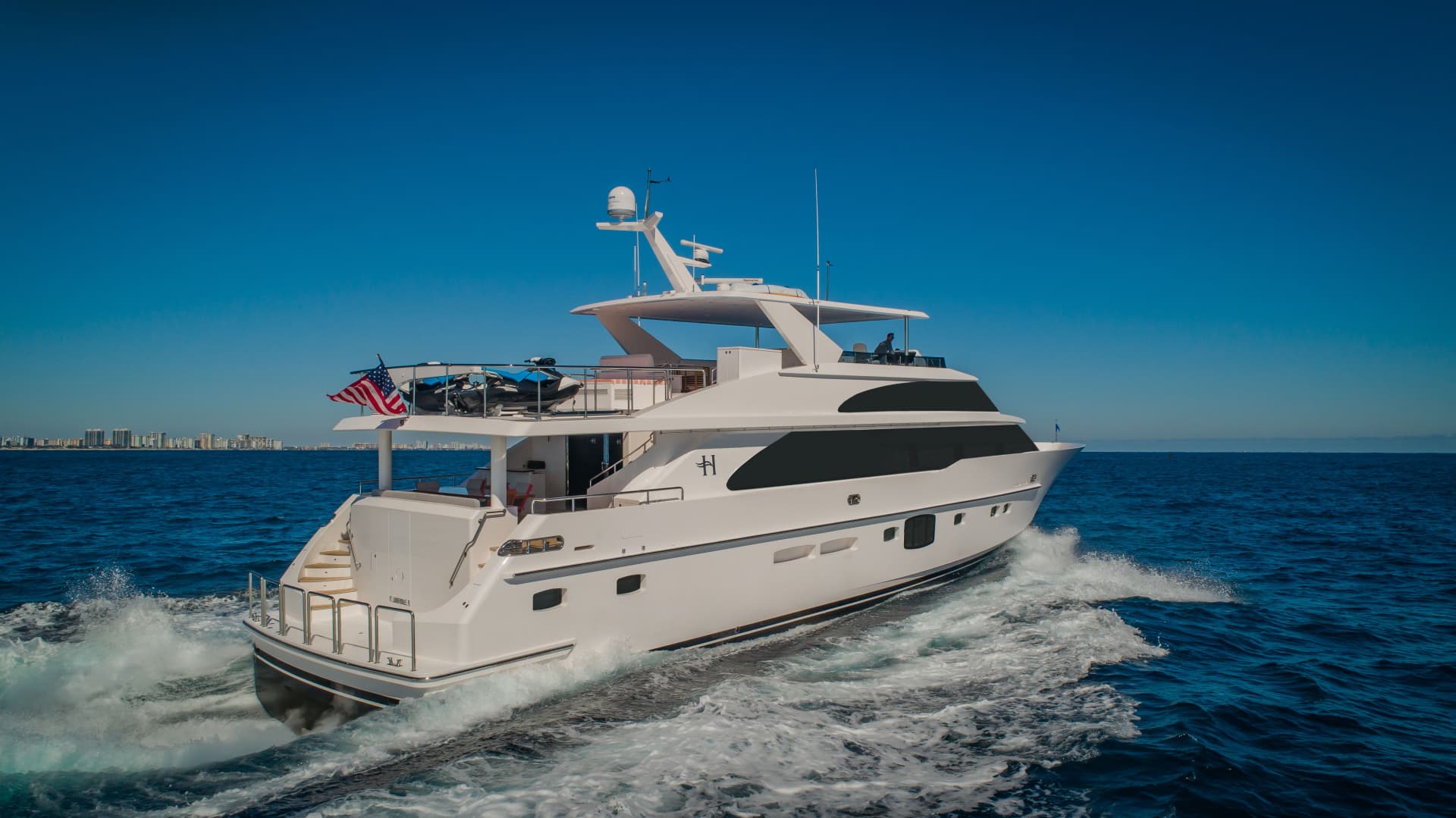

NEW BUILD 105’ 2024 HARGRAVE

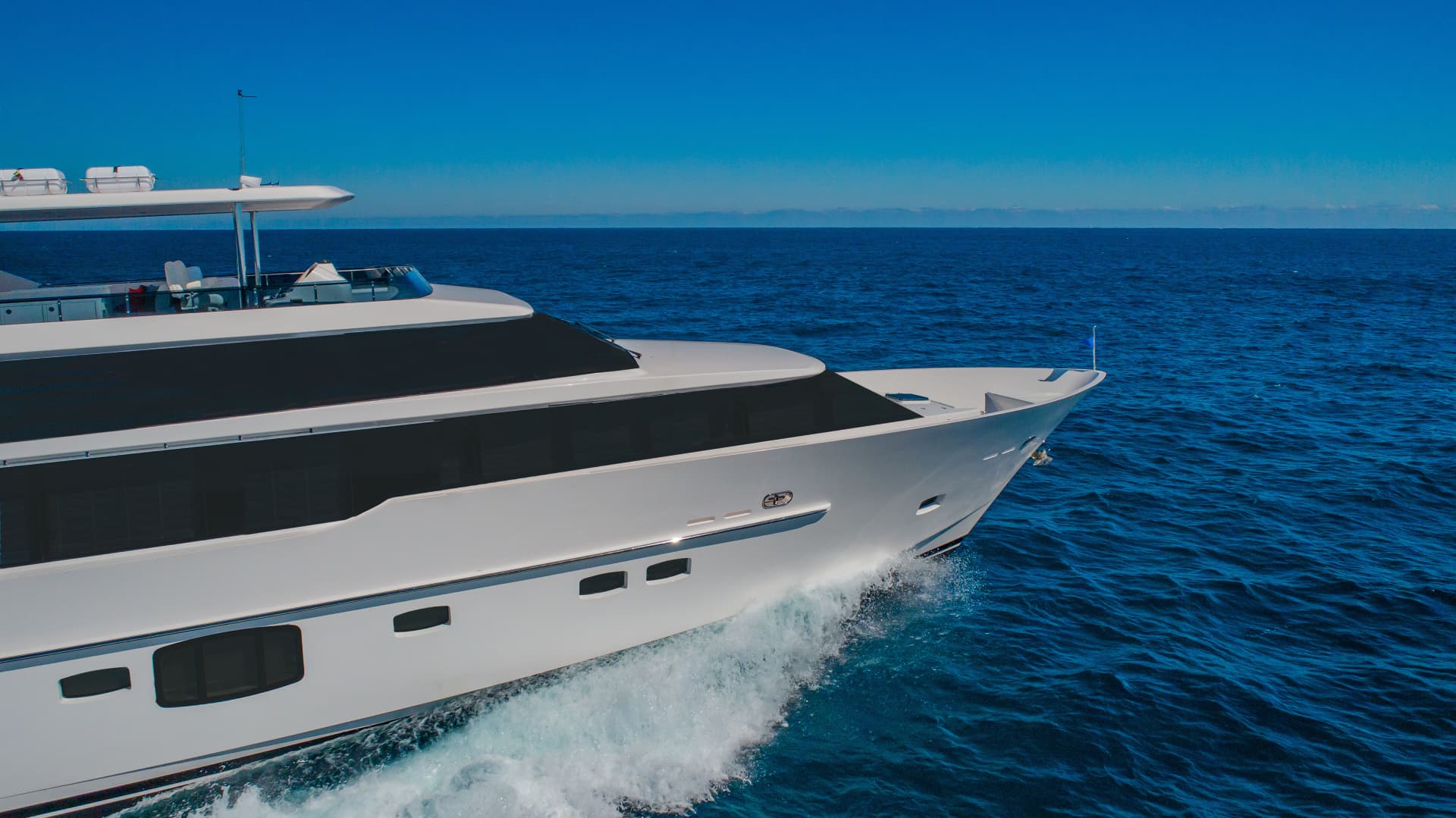

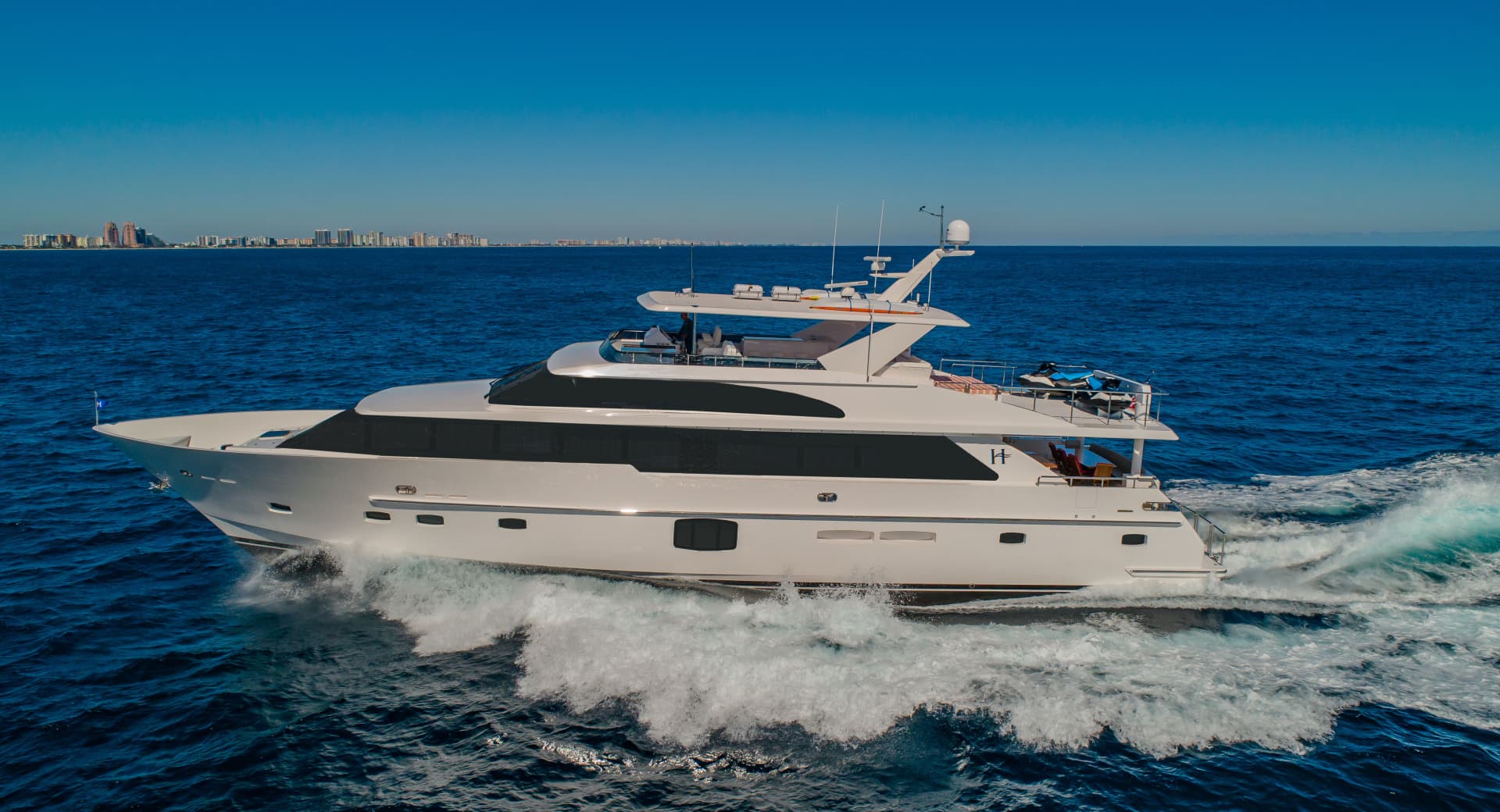

105' x 23' Beam Hargrave Widebody Motoryacht

W/CAT C32A 1600 HP Engines and ZF3055A Transmissions

If you're shopping in the 100'-110' size range you really should see this one-owner yacht from Hargrave. This 4 staterooms motor yacht is a real knockout. Big, beamy, fast, and powerful, she has clean modern styling that reflects her pedigree, and she is designed and engineered for outstanding performance on a new smooth-riding new performance hull platform by legendary naval architect Jack Sarin. The yacht is professionally maintained in pristine condition and she is ready to leave in the morning. This 105' is the best deal on the table in this size and price range special.

KEY EQUIPMENT SPECIFICATIONS – HARGRAVE 105-J11

TYPE Semi-Displacement Motor Yacht

DESIGN & STYLING        Hargrave Custom Yachts

NAVAL ARCHITECTURE Hargrave Custom Yachts

BUILDER Hargrave Custom Yachts

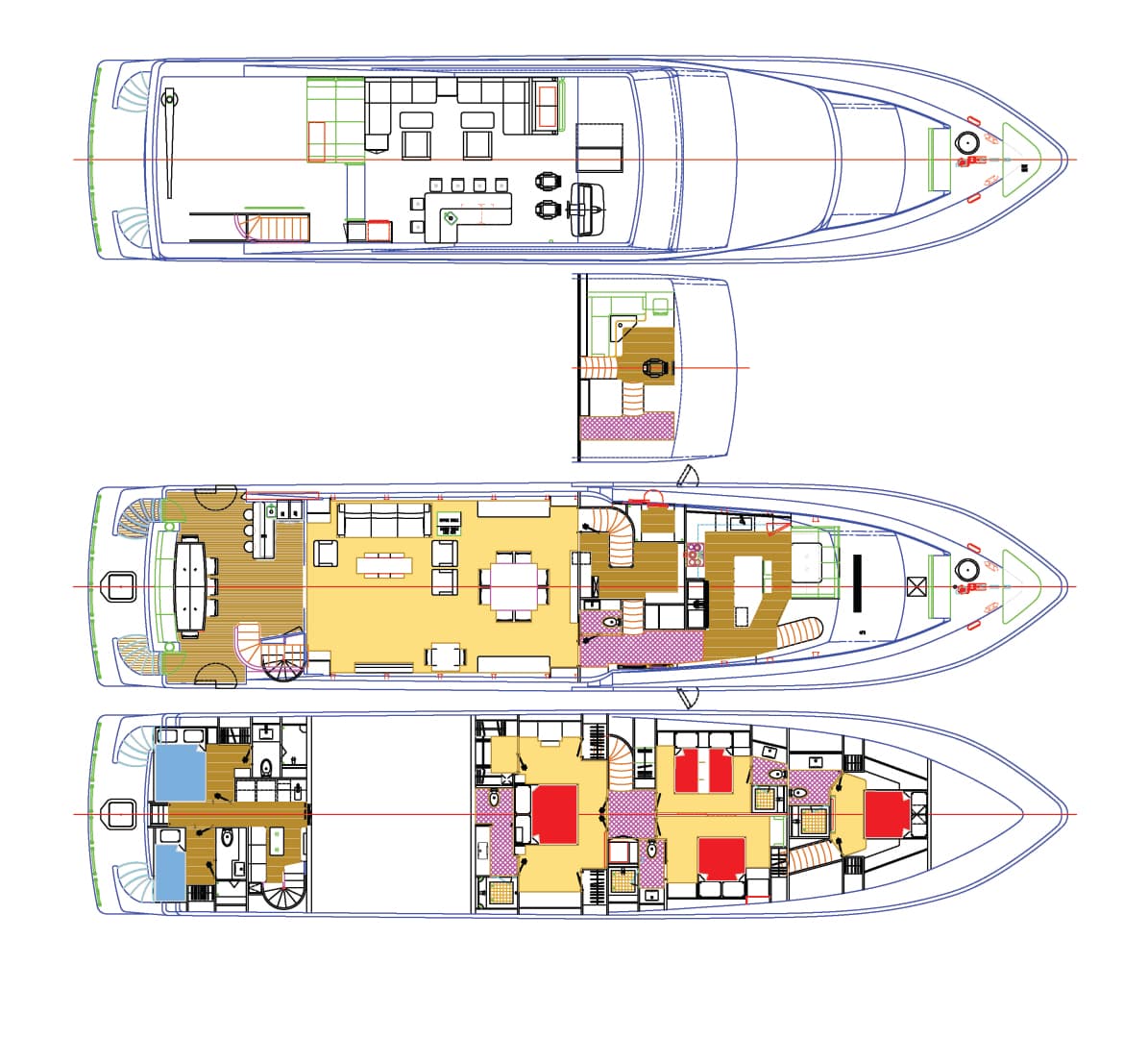

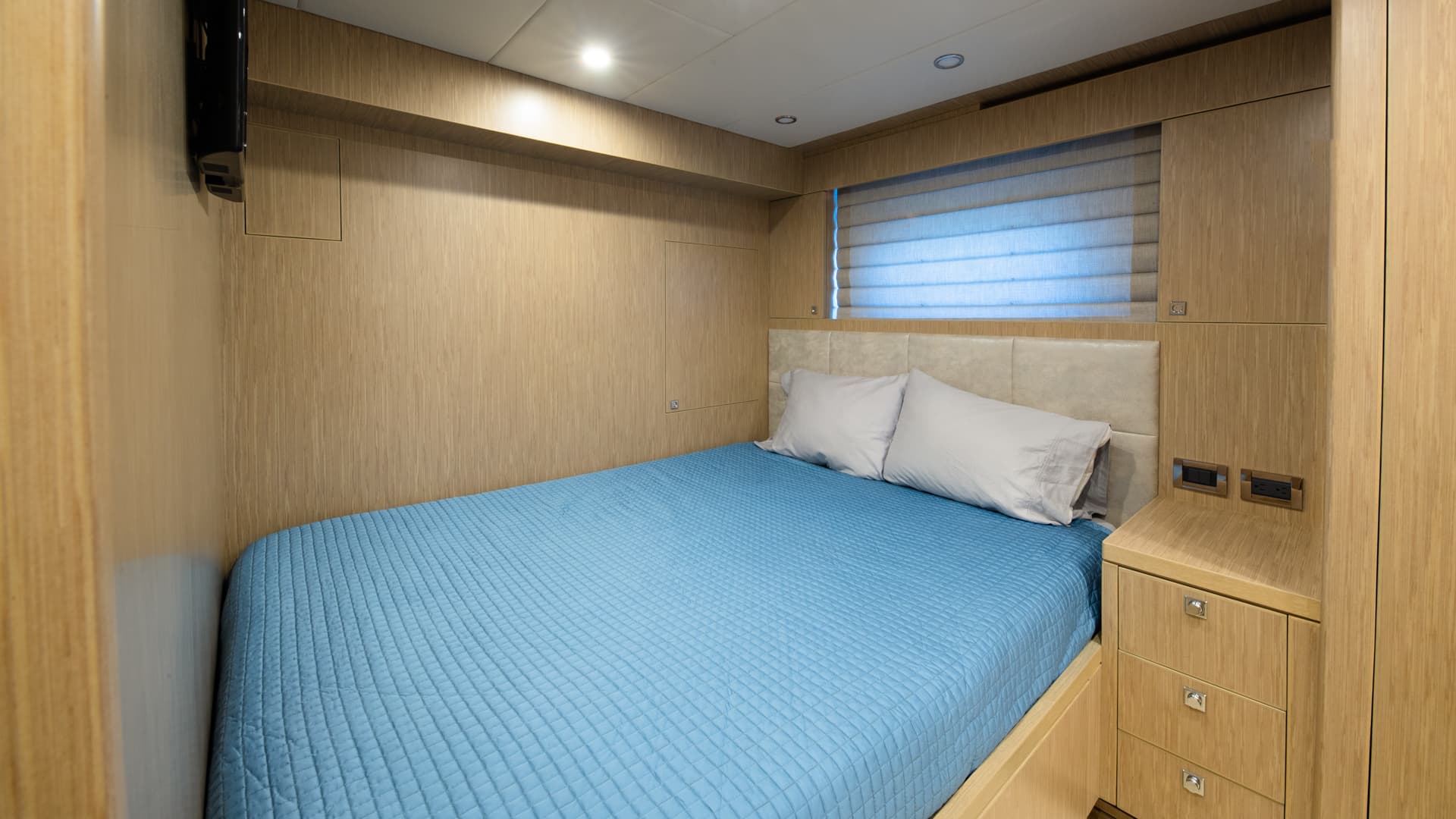

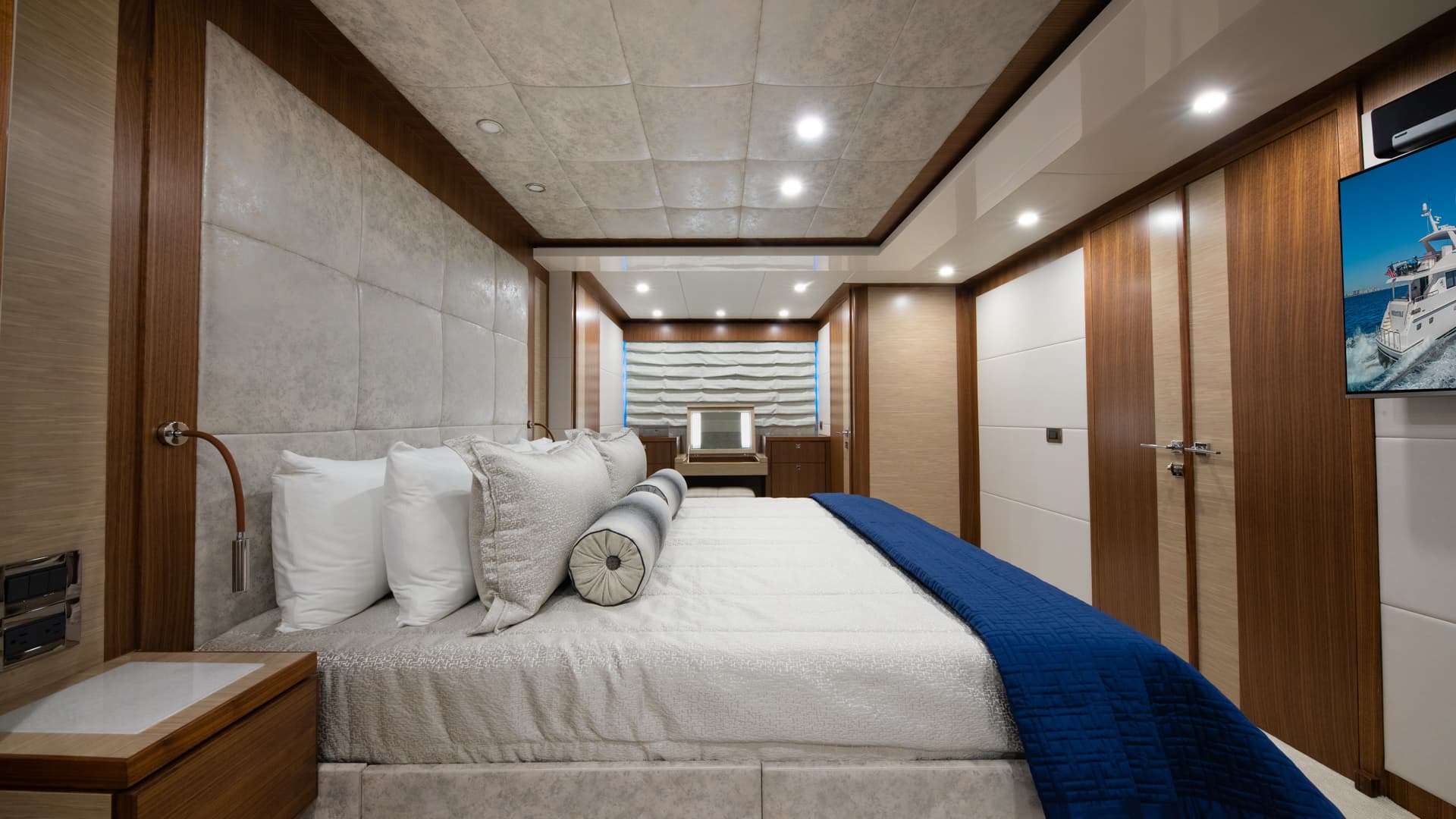

CABINS GUESTS - 4) Cabins – 8 Guest

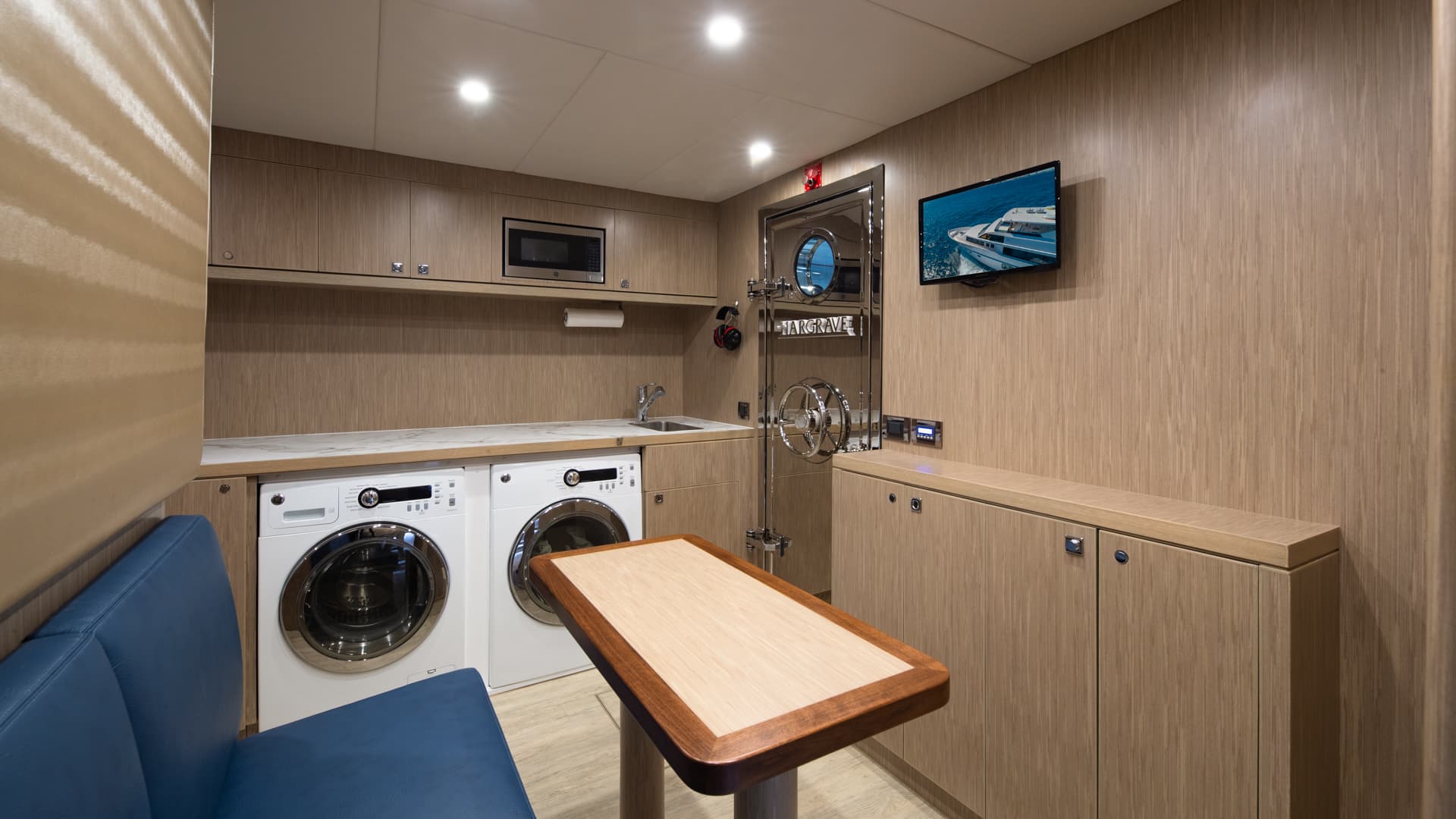

NUMBER of CREW - (2) Cabins – 4 Crew

LENGTH OVERALL (hull) - 104' - 6"

BEAM (max) - 23' - 0"

DRAFT - 5' - 8"

DISPLACEMENT (approx.) - 258,187 lbs. / 124.4 Metric Tons (Half Load)

HULL CONSTRUCTION - Foam Cored GRP

SUPERSTRUCTURE - Foam Cored GRP

EXTERIOR PAINT SYSTEM - Gelcoat

CLASSIFICATION - Not Classed – Built to DNV & ABYC Construction Specifications

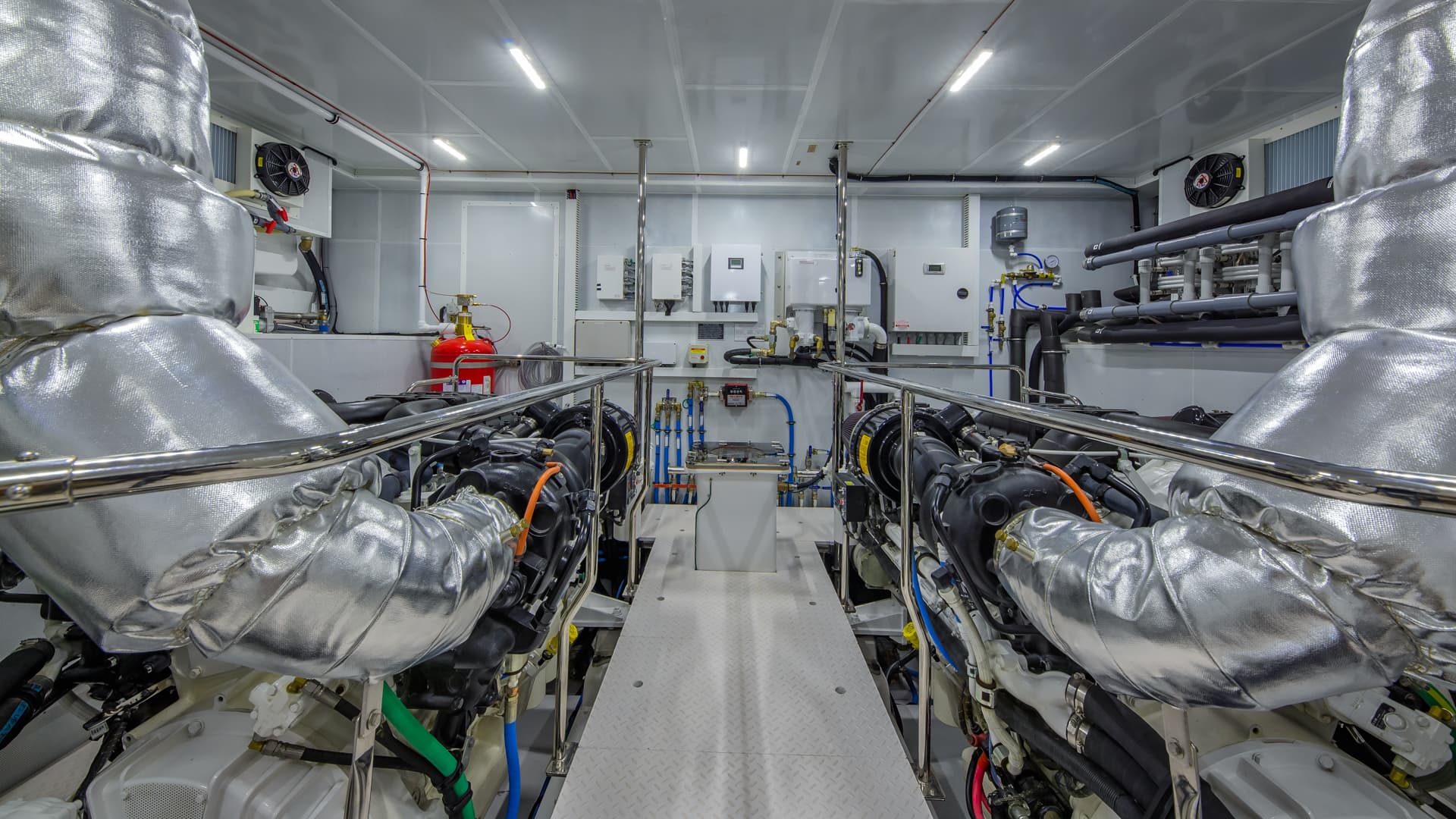

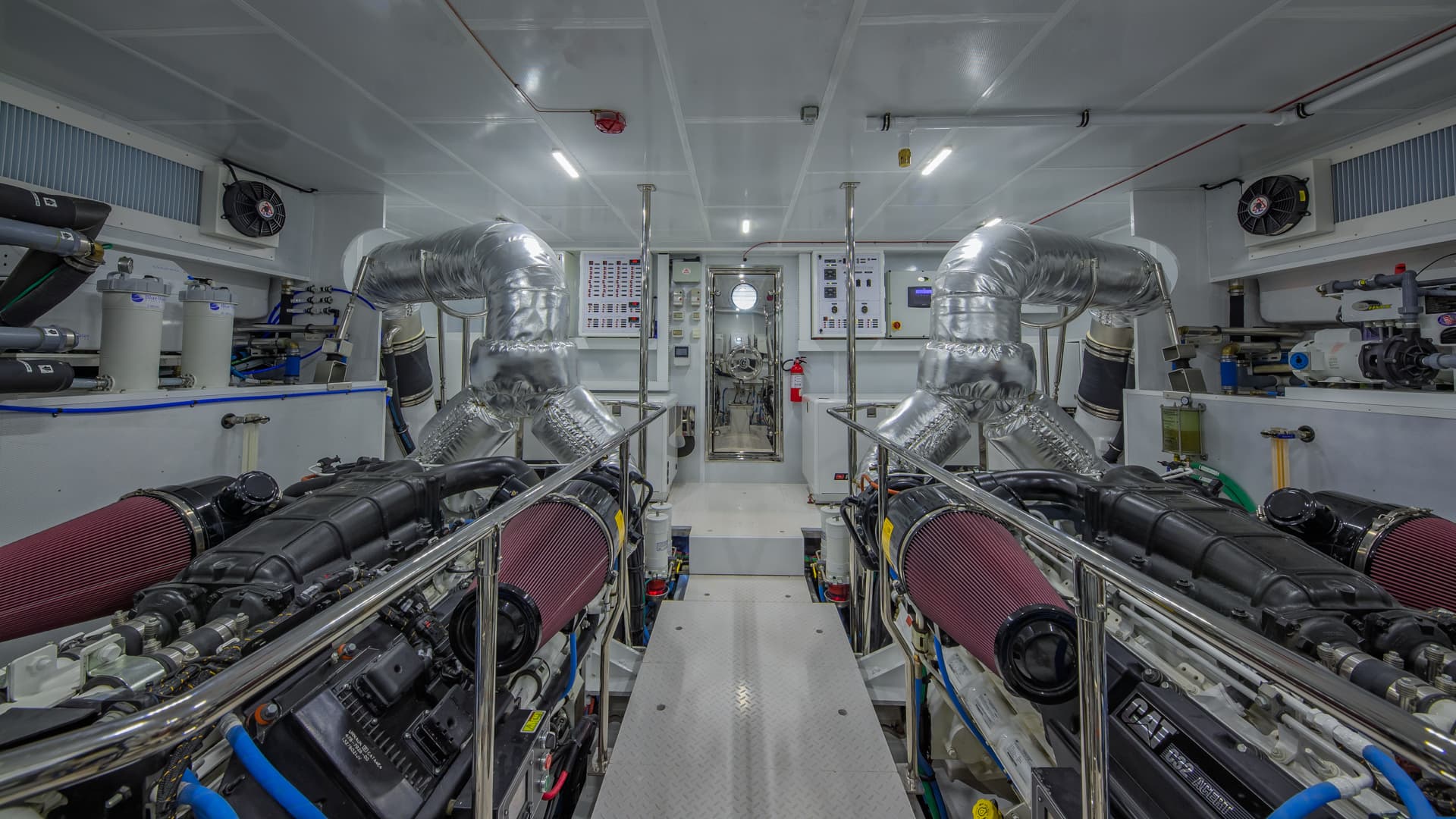

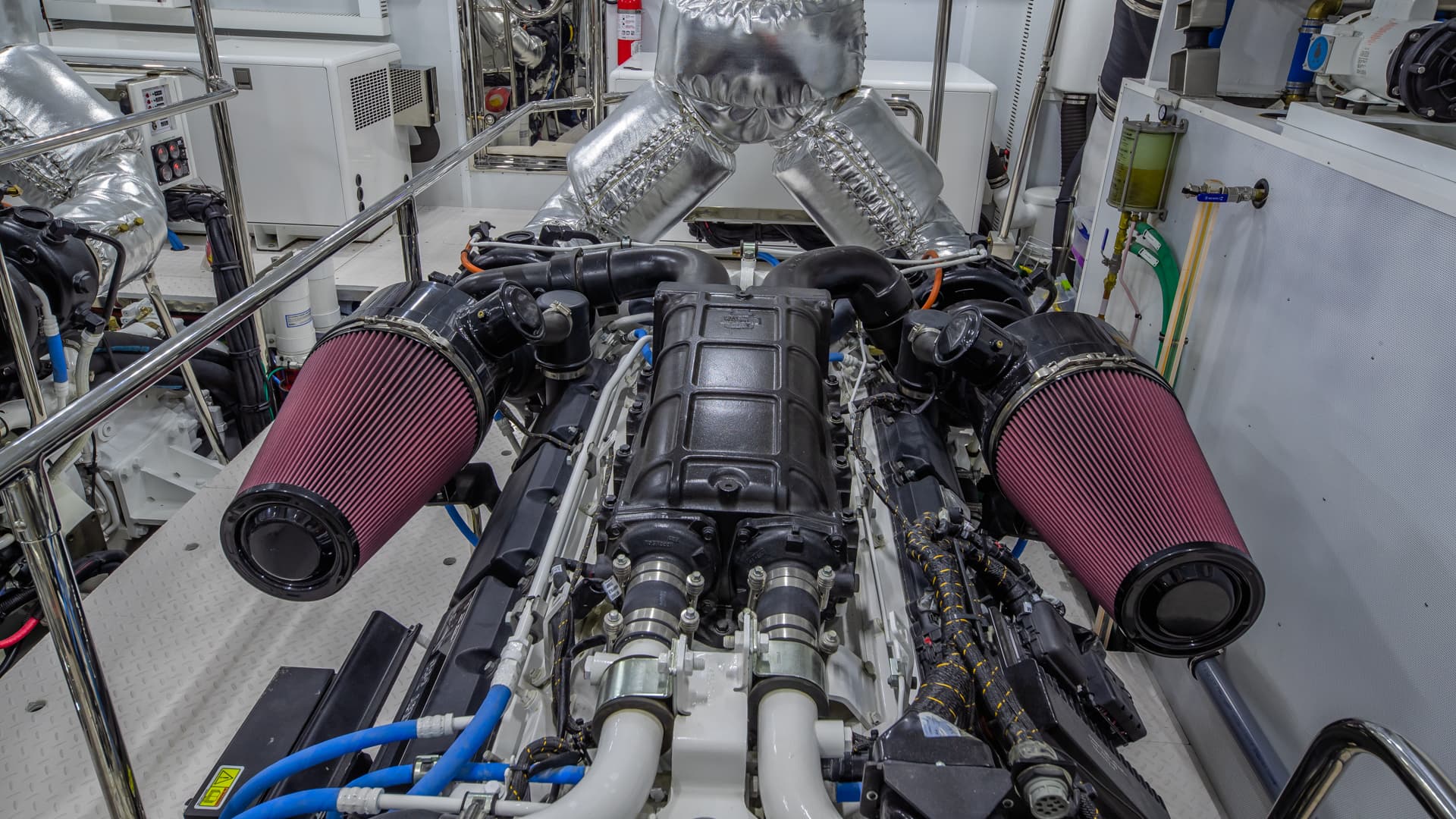

MAIN ENGINES - Caterpillar C-32 ACERT

POWER - 1600 Bhp @ 2300 RPM

GEARBOX - ZF 3055A  - 3:1

SHAFT & PROPELLER - Hung Shen

STEERING GEAR - Hynautic / Sea Star

EXHAUST SYTEM - D’Angelo Marine Exhaust

SPEED ( Maximum / Cruise ) - 21 knots / 18 knots

RANGE - 300 NM @ Cruising Speed - 2000 NM @ 10 Knots

BOW THRUSTER - Naiad 1HT – 60 Hp

STABILIZERS - Naiad 302 - 12 Sq Ft Fins

WINDLASSES - Maxwell VWC 4000 Electric

CAPSTANS - Maxwell(2)  2200

TENDERCRANE - Quicklift  2000 Lb Hydraulic Rotation

FUEL CAPACITY - 4000 Gallons

FUEL DAY TANK CAPACITY (2) @ 970 Gallons

FRESHWATER CAPACITY (1) @ 800 Gallons

BLACKWATER CAPACITY (1) @ 200 Gallons

WATERMAKER (1) Blue Water Explorer 1400 Gallons / Day

SEWAGE TREATMENT (1) @ 150 Gallons

ELECTRICAL SYSTEM - 120 / 240 VAC 60 Hz Split Buss

GENERATORS - (2) Northern Lights 38 KW

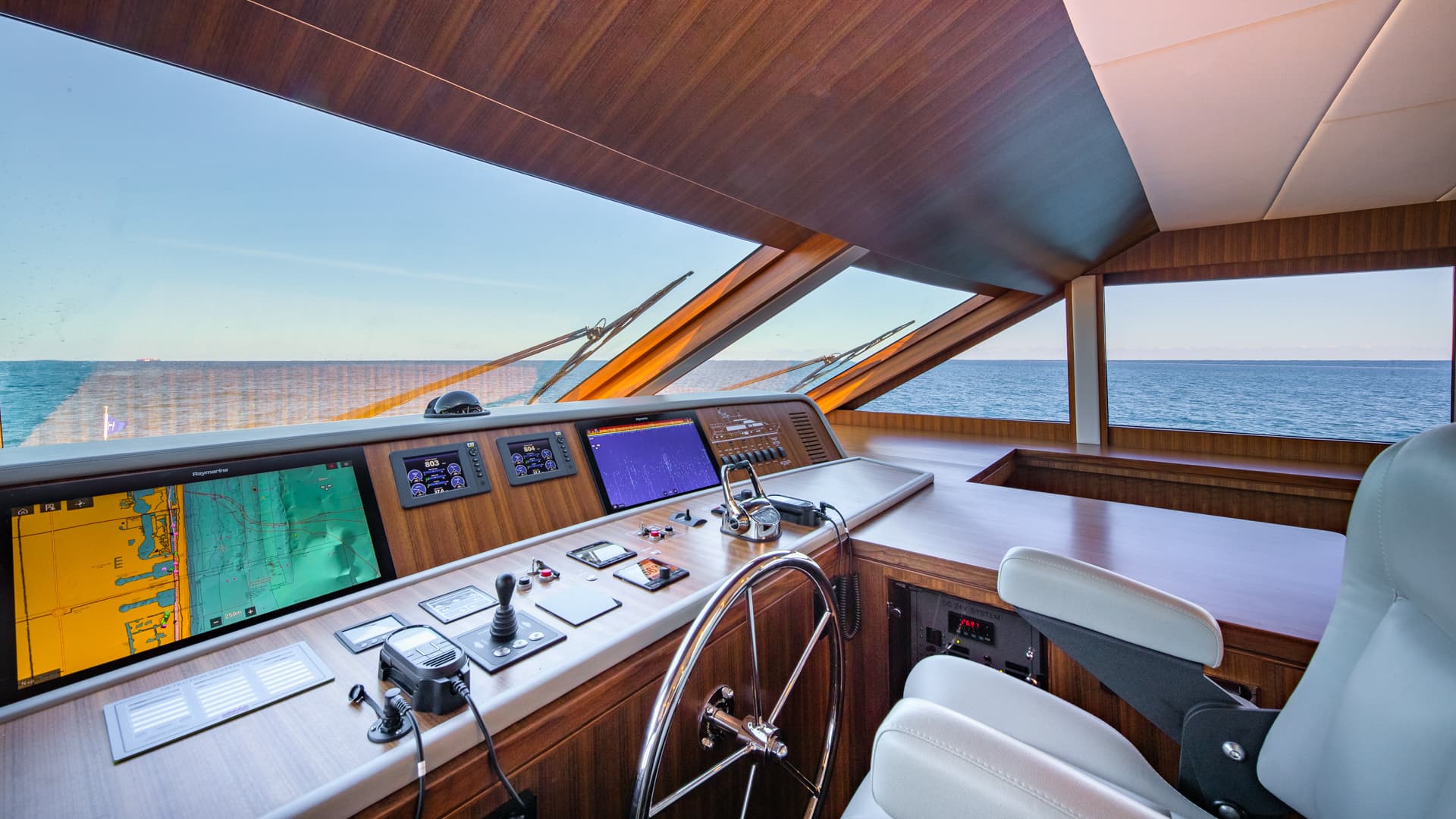

CONTROLS - Glendinning with Backup

FIRE FIGHTING SYSTEM - Sea Fire FM 200

AIR CONDITIONING SYSTEM - Dometic – CruisAire - 180,000 BTU

NAVIGATION SYSTEM - Raymarine / Concorde Marine Electronics

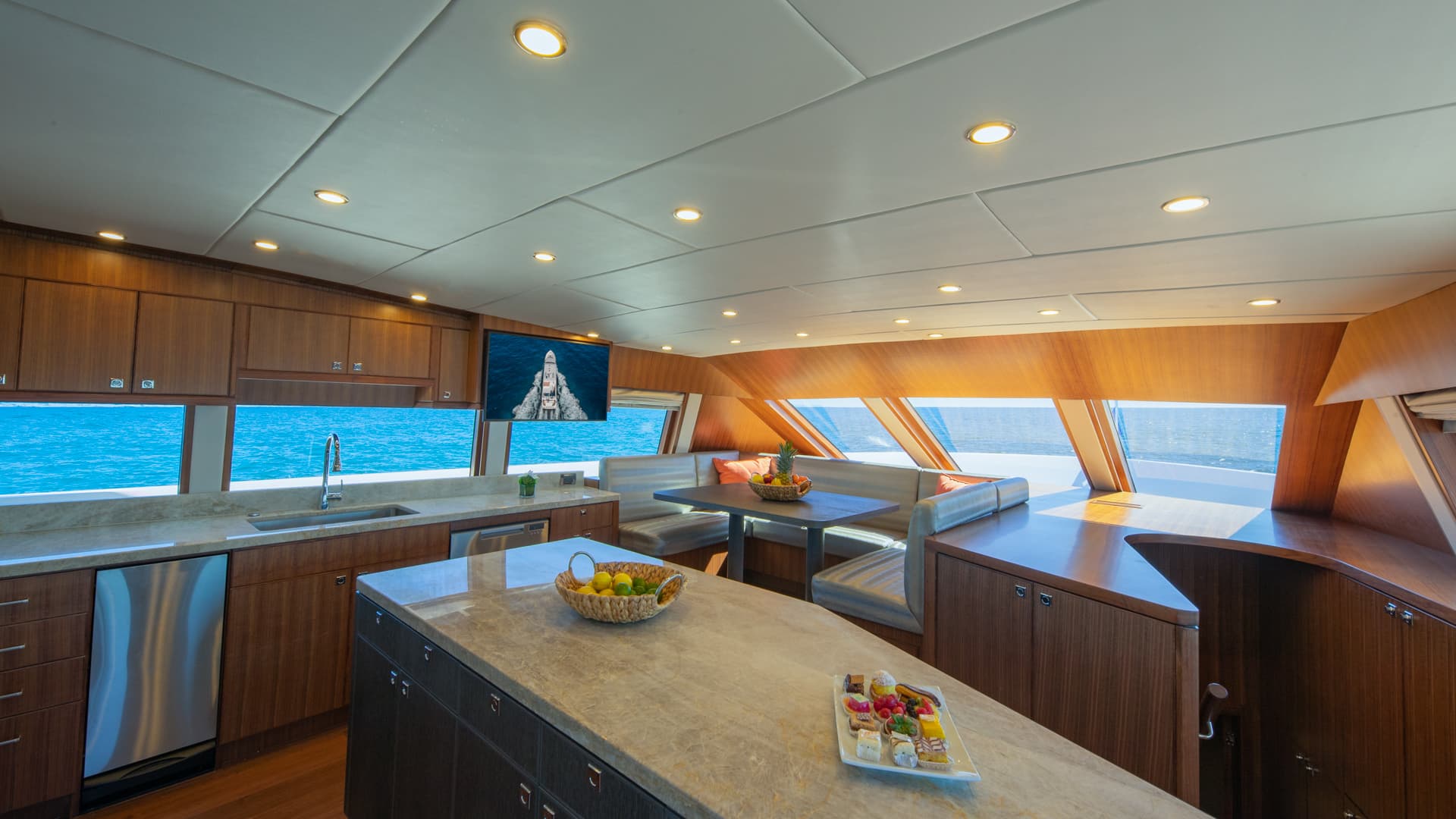

GALLEY - General Electric and Sub Zero

ENTERTAINMENT SYSTEMS - Concorde Marine Electronics
